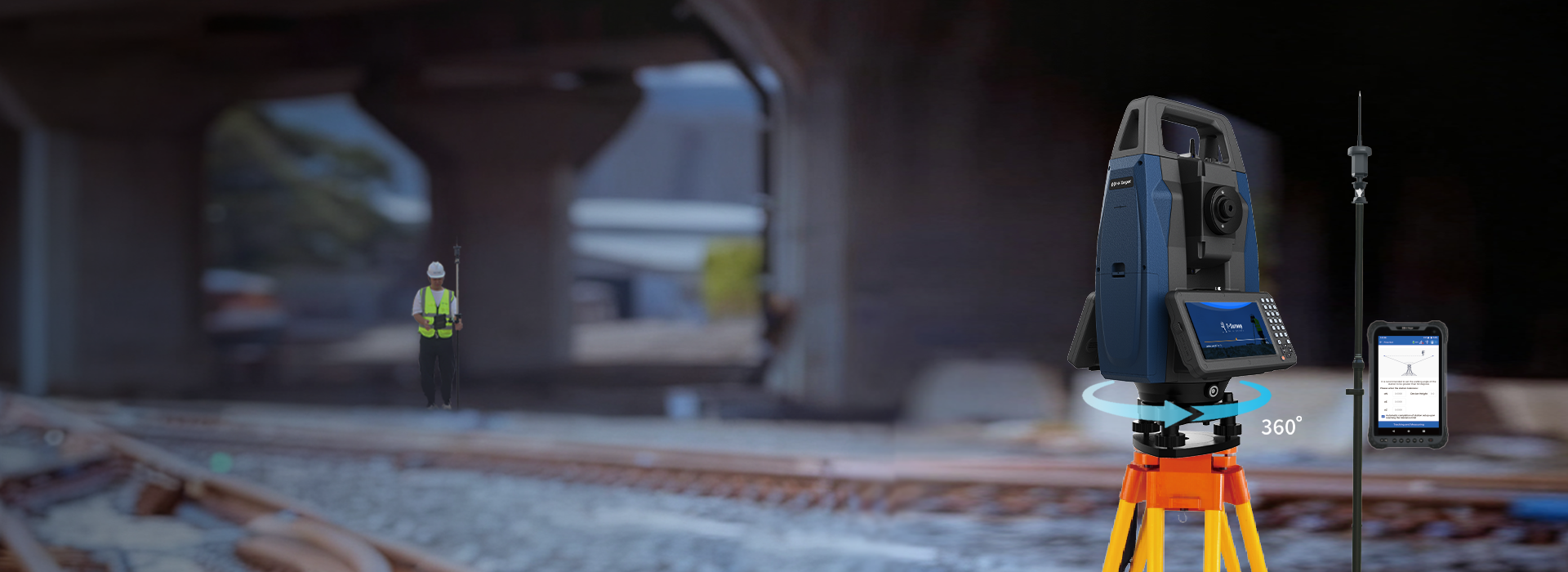

Robotic Total Station
HTS-820 delivers true one-person surveying — from rough terrain to complex construction sites. Its AI prism tracker locks on target reliably and reacquires targets after obstacles faster, like military tracking.
Enhanced by unique imaging technology and featuring Intelligent Imaging Station settings, it significantly cuts field hours by 50%. This is the tool that lets you focus on engineering, not equipment.

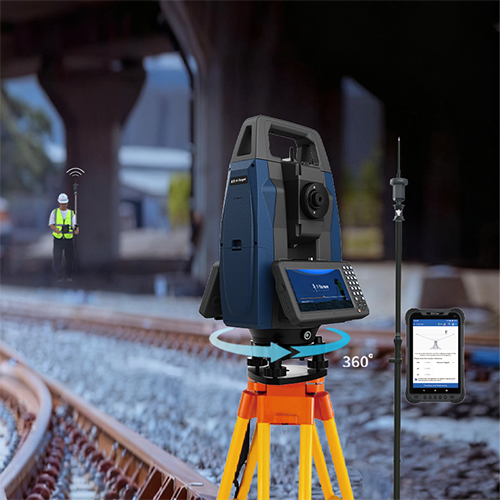

Hybrid Tracking: Always Locked
HTS-820’s hybrid tracking system combines multiple data sources to maintain precision in any condition. If the pole moves behind an obstacle and reappears, the system instantly reacquires it, ensuring smooth workflow and reliable results.
Image-Based Stationing: Fast & Smart
No more manual centering or instrument height measurement. With intelligent imaging technology, HTS-820 automatically calculates the instrument height with up to 2 mm accuracy, reducing setup time while ensuring precision and efficiency.

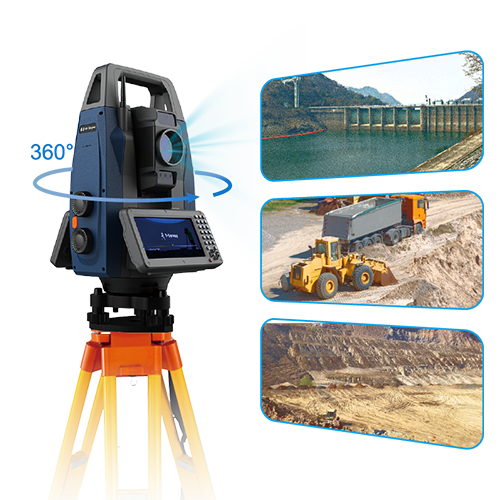

Smart Prism Search: Precision at Every Distance
HTS-820 supports multiple prism search modes for different situations. The 360° Super Search is suitable for longer distances of 20–300 m. It uses a planar laser to scan in a fan-shaped pattern, enabling faster prism detection. The AI Search is suitable for ≤20 m. It integrates camera parameters and applies AI algorithms to make prism search easier.

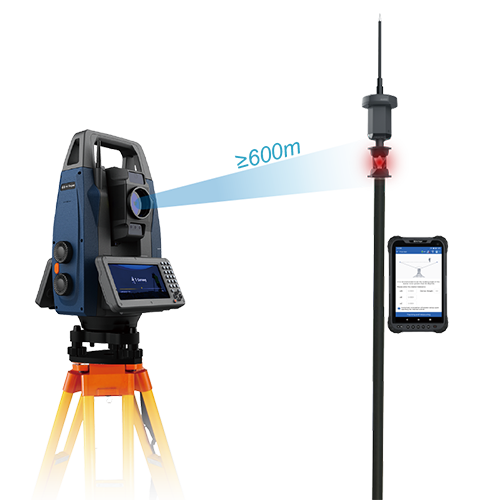

Pole Control System: Compact & Reliable
Weighing just 400 g with up to 10 hours of battery life, the Pole Control System powers on with one button and connects instantly. It enables remote control of the total station over 600 m, with high-precision IMU and optical tilt compensation for accurate measurements even on uneven terrain.
