The Unmanned Surface Vehicle Used in Hydrographic Surveying



Nowadays, more than 95% of the human residencies (city, towns and villages) are established  by rivers, brooks, and wells. As the industry revolution emerging from the 1st to the 4th, more and more interaction between human and water are involved, more bridges are crossing the river, more ports and harbor are under construction for economic and social purposes.

From 19th century to 21st century, industry revolutions have accelerated the interactions between human and water. More bridges are built and more ports and harbor are under construction for economic and social purposes.

Meanwhile, new technologies of hydrographic surveying served for the civil engineering such as multi-beam echo sounder, side scan sonar, sub-bottom profiler and even LiDAR for topographic and hydrographic purposes greatly contribute to the work for public authorities and private sectors all over the world.



However, there are many places in the world the water conservancy and traffic administrative departments and authorities facing the great challenges when they design or implement the design of the city since the urbanization and urban renewal are on their way in a fast speed.

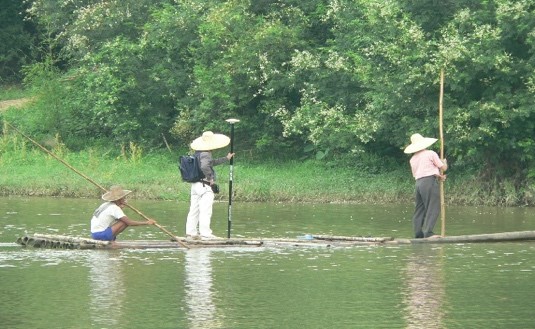

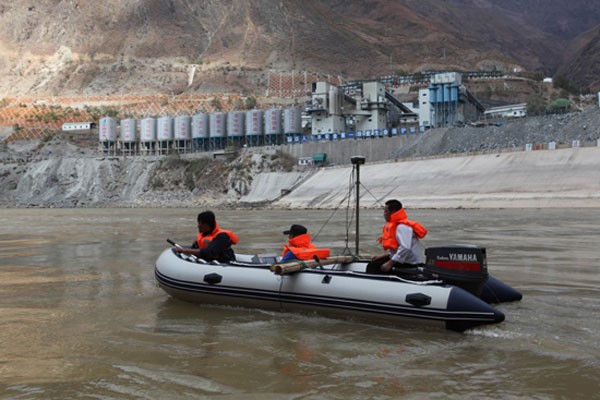

In the past old days, when the surveyors are going to survey the depth of the water, the first thing they have to do is to find and rent boats or ships locally which are always costly, then the heavy echo sounder and other accessories will put on the boat, finding a proper position to mount the transducer which will require lest interference from the water waves and engine propellers. What is more, the surveyors have to take care of the actual depth because the water might be too shallow for the boat to float. In case of being stranded, some surveyor might try to hire the bamboo raft or small sampan (small and lightweight boat), which can work perfectly on the shallow water but lack facilities to protect the staff's life and they are easy to be capsized by the waves created by the big ship or torrents. For some occasions, the surveyors need to survey the barrier lakes after the earthquake, the polluted water or even monitor the water level of the tailings pond.



Some more flexible solutions are needed when survey the lake in the island where you cannot easily convey a boat there. Similar requirements are also claimed by the surveying task on the brooks which might contain shallow shoal and dams from the upper stream to lower stream. So in these sentences, surveyors are facing the challenges of the safety, accuracy and efficiency challenges.



Here in this paper some projects from China as the solution examples provided for readers' reference.

HEAVY TRAFFIC CHANNEL SURVEYING



Project background

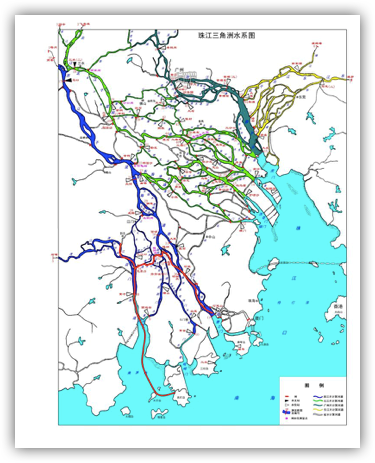

Pearl River Delta, intertwined within the water network, and products of richness, now had become one of the most important and main economic engine and industry area in China since 1979. More than 30% of the "made in China" goods are produced or assembled there and exported to the rest of the world from that area. The water network and hundreds of harbors have been playing a very important role in goods export and raw material import. There was a plan to build some more pipelines for the electricity gas and municipal water across some channels. Before laying the pipelines the constructor must survey the channels to get the latest water bed situation. One of the main Channels that the pipelines are going to cross is called "Modao Gate Channel". 89.5 KM long with more than 30 ports and thousands of factories, 45 million cargo volume and 70,000 boundings, has brought this 3000 tonnage vessel level channel more than 800 vessels daily on the water. Thus, it would be quite difficult for the safety of the surveyors as they had to sail the boat or ship across the river to do the cross-section survey and there is no traffic light on the channel to sort out the heavy traffic.



Task goals:

  • To finish a hydrographic survey within 20 cm accuracy
  • 5 channel where the pipelines are going to pass



Challenges:

  • Cross section survey is easy to slow down the busy heavy traffic and even causing accidents
  • Impossible to survey the shallow area
  • High cost for periodically channel survey



USV system, an ideal solution for the project

USV iBoat BM1

The Unmanned Surface Vehicle, also known as USV, is an ideal solution for the surveyors to finish the work on time without any matters on their security.



This USV is called iBoat BM1, it can work for more than 12 hours continuously, with the auto pilot function providing the precision survey, gap between each surveying lane can be preciously implemented (within 10 cm offset). What is more, the boat can be easily sail back automatically when the signal is lost or the battery is insufficient for the coming work, according to the pre-setting multiple home points. The real time camera data transmission can help surveyors keep monitoring the boat on the bank.

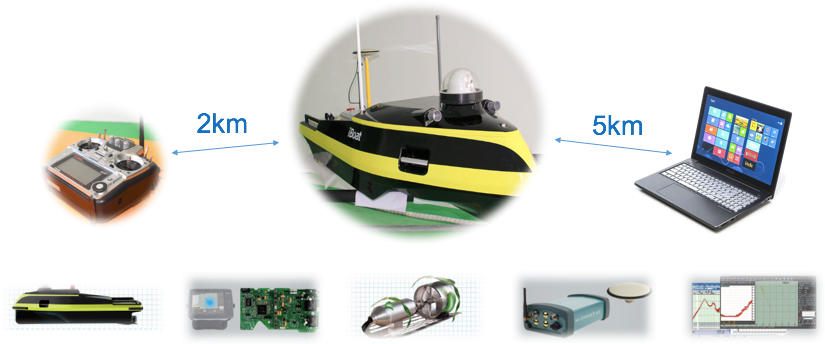

This advanced and autonomous system consists of the vessel body, excellent echo sounding module and positioning module, of course, the data communication system and the controlling system are included.



Project Planning

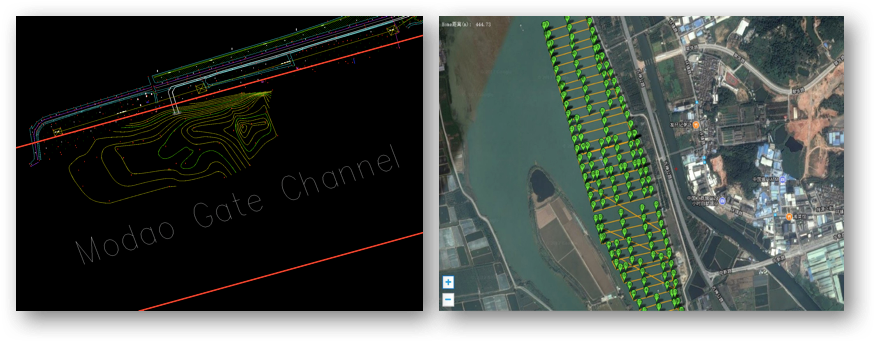

Firstly, designing the survey lanes backgrounded by online Google satellite images on the USV pilot software. The interval and length of each cross section lane can be easily implemented. The Unmanned Surface Vehicle, also known as USV, is an ideal solution for the surveyors to finish the work on time without any matters on their security.

Auto-pilot and manual control

When the USV started to work, it will sail automatically or manually, users can switch the working mode in real time. In this surveying task, the USV turned away to avoid the heavy ships easily as soon as the controller was sending the interception command into manual mode. The flexibility and swift performance guarantee the lightweight boat's safety and efficiency, which offering a lower risk job than the human surveying.

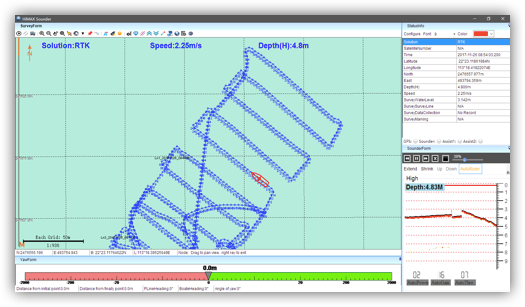

Real time surveying data transmission


The data will be transmitted form the boat to the laptop software where the user can easily monitor the position, heading, depth and control the parameter setting for the sounding system on the safe bank area.

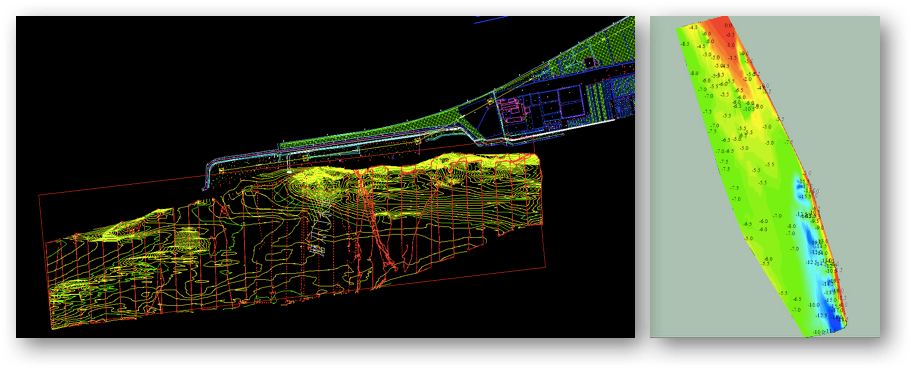

Surveying Result

The data will be transmitted from the boat to the laptop software where the user can easily monitor the position, heading, depth and control the parameter setting for the sounding system on the safe bank area.

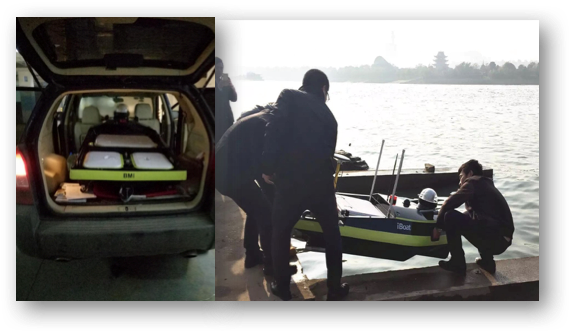

Boat deployment and shipment

The data will be transmitted from the boat to the laptop software where the user can easily monitor the position, heading, depth and control the parameter setting for the sounding system on the safe bank area.

LONG RIVER WHERE TIME AND SHALLOW WATER MATTERED



Even it is not deep enough to carry the big ships, Hun River, which called the "Mother River", is still important to the Shenyang City, the capital of Liaoning Province, due to the vital resource for municipal water supplement, surrounding the city like a belt, greening the city with artificial waterfront parks. Yearly and monthly, the Water Resource Authority of Shenyang City need to monitor the hydrographic condition in seasons for civil security, waterfront part maintenance and sustainable developing study. However, it couldn't be implemented by traditional hydrographic survey because there are several dams existing and lots of shoal hiding from the source of the river(a big reservoir) to the downstream area——the Shenyang City, which might bring a lot of trouble for boat arrangement, transportation and safety. Therefore, USV had become an ideal solution for the surveying.



Task Requirement:

  • To finish a hydrographic survey with 20 m section interval
  • Total length of the surveying part of the river is 80km so the surveying lane may be up to 1000km
  • To finish the project as soon as possible within a month

With the help of the USV iBoat BM1, the job was done within 14 days, which is a dramatically improvement comparing to the traditional way.



CONCLUSION

Unmanned Surface Vehicle is a smart platform that can help people to finish the project safely and fastly, widely used for the rivers, busy channels, shallow water, lakes and reservoir dut to its lightweight, strong body design and autonomous systems.



BIOGRAPHICAL NOTES

Adin Li

Product Manger in Hi-Target for more than 2 years, specialized in land survey solution, marine survey solution support and marketing.

Stefan Wei

Marketing Director in Hi-Target for more than 2 years, he was The Lead of Hi-Target After Sale Department for more than 4 years, and now is the head of product manager team. He has rich experiences in land survey, GIS data collecting and 3D laser solution promotion, support and marketing.
